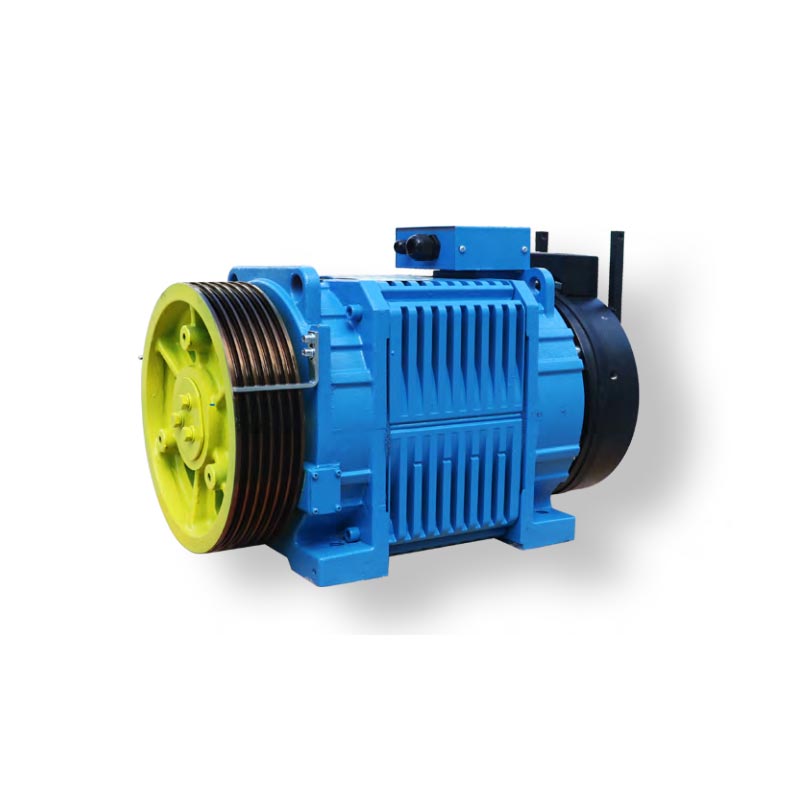

WR series machines
| Capacity | 1150kg-2000kg |
| Wrap | Single Wrap |
| Rotor | Internal rotor |
| Undercut | U |
| Foot Pad Flatness | < 0.5mm |
| Protection Rating | IP40 |
| Insulation Class | F |
| Poles | 20 |
| Duty Cycle | S5-40％ |
| Motor Rated Voltage | AC380V |
| Brake | Plate |
| Picking/Holding Voltage | DC110V |
Full-wave rectification power source for brake
| Model |
Capacity kg |
Elevator Speed m/s |
Rated Output KW |
Rated Current A |
Rated Speed rpm |
Frequency Hz |
Sheave Diameter mm |
Torque Nm |
Ropes |
Groove Dist. mm |
Cut Angle | Groove Angle | Roping |
Shaft Load kg |
Handle Wheel | Remote Release |
Inertia kg m^2 |
Weight kg |
| WR-1150-100-E | 1150 | 1.0 | 7.0 | 19.0 | 119 | 19.9 | 320 | 561 | 8-Φ8 | 12 | β=90° | γ=30° | 2:1 | 3500 | N | Y/N | 0.70 | 310 |
| WR-1150-150-E | 1.5 | 10.5 | 28.5 | 179 | 29.8 | |||||||||||||
| WR-1150-160-E | 1.6 | 11.2 | 191 | 31.8 | ||||||||||||||
| WR-1150-175-E | 1.75 | 12.3 | 209 | 34.8 | ||||||||||||||
| WR-1150-200-E | 2.0 | 14.0 | 32.0 | 239 | 39.8 | |||||||||||||
| ★WR-1250-100 | 1250 | 1.0 | 7.2 | 21.0 | 119 | 19.9 | 320 | 576 | 9-Φ8 | 12 | β=90° | γ=30° | 2:1 | 3500 | N | Y/N | 0.76 | 400 |
| WR-1250-150 | 1.5 | 12.5 | 33.0 | 179 | 29.8 | 665 | ||||||||||||
| WR-1250-160 | 1.6 | 13.3 | 191 | 31.8 | ||||||||||||||
| WR-1250-175 | 1.75 | 14.6 | 209 | 34.8 | ||||||||||||||
| ★WR-1250-200 | 2.0 | 15.9 | 38.0 | 239 | 39.8 | 634 | ||||||||||||
| ★WR-1350-100 | 1350 | 1.0 | 8.6 | 23.0 | 119 | 19.9 | 320 | 685 | 9-Φ8 | 12 | β=90° | γ=30° | 2:1 | 3500 | N | YIN | 0.76 | 400 |
| WR-1350-150 | 1.5 | 13.5 | 37.0 | 179 | 29.8 | 718 | ||||||||||||
| WR-1350-160 | 1.6 | 14.4 | 191 | 31.8 | ||||||||||||||
| WR-1350-175 | 1.75 | 15.7 | 209 | 34.8 | ||||||||||||||
| ★WR-1350-200 | 2.0 | 17.1 | 40.0 | 239 | 39.8 | 685 | ||||||||||||
| ★WR-1600-100-D | 1600 | 1.0 | 9.7 | 23.0 | 119 | 19.9 | 320 | 775 | 10-Φ8 | 12 | β=90° | γ=30° | 2:1 | 5000 | N | N | 1.40 | 500 |
| WR-1600-150-D | 1.5 | 16.0 | 42.0 | 179 | 29.8 | 851 | ||||||||||||
| WR-1600-160-D | 1.6 | 17.0 | 191 | 31.8 | ||||||||||||||
| WR-1600-175-D | 1.75 | 18.6 | 209 | 34.8 | ||||||||||||||
| WR-1600-200-D | 2.0 | 20.3 | 45.0 | 239 | 39.8 | 812 | ||||||||||||
| ★WR-2000-100-D | 2000 | 1.0 | 11.5 | 28.0 | 119 | 19.9 | 320 | 922 | 12-Φ8 | 12 | β=90° | γ=30° | 2:1 | 5000 | N | N | 1.50 | 520 |
| WR-2000-150-D | 1.5 | 20.0 | 52.0 | 179 | 29.8 | 1064 | ||||||||||||
| WR-2000-160-D | 1.6 | 21.3 | 191 | 31.8 | ||||||||||||||
| WR-2000-175-D | 1.75 | 23.3 | 209 | 34.8 | ||||||||||||||
| ★WR-2000-200-D | 2.0 | 24.4 | 55.0 | 239 | 39.8 | 976 |
Notes: 1. The standard design of this series is only applicable for 180° wrap angle.
2. With ★ mark, the balance ratio is 0.45~0.5.
3. Regen drive application, please consult with us, then order with notes.
