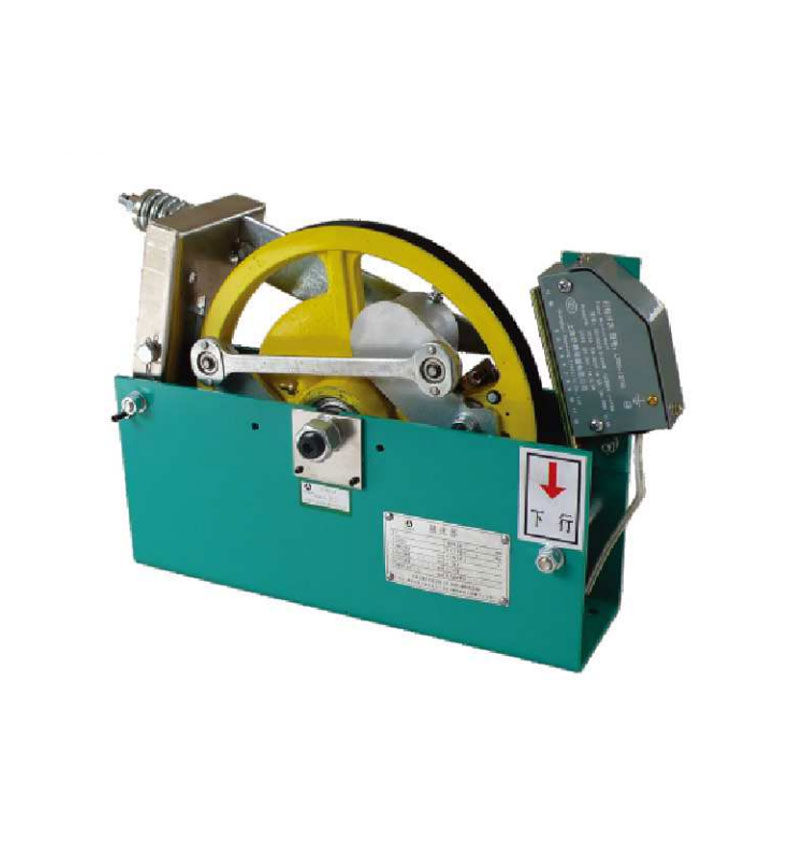

Overspeed Governor XS3/XS3W
XS3/XS3W Overspeed Governor
Technical Parameters
1、Rated speed:0.25~2.5m/s2、The tensile force: 800~1800N
3、Rope diameter:08mm
4、Sheave diameter: 0240mm
5、Car Travel:
a)Tensioning force is 250N: H≤60m
b)Tensioning force is 350N:60m
Overspeed Governor XS3A
XS3A Overspeed Governor
Technical Parameters
1、Rated speed:0.25~2.5m/s
2、The tensile force:800~1800N
3、Rope diameter:08mm
4、Sheave diameter:0240mm
5、Car Travel:
a)Tensioning force is 250N: H≤60m
b)Tensioning force is 350N: 60m
Overspeed Governor XS3D
XS3D Overspeed Governor
Technical Parameters
1、Rated speed: 0.5~1.75m/s
2、The tensile force: 800~1800N
3、Rope diameter: 08mm
4、Sheave diameter: 0240mm
Overspeed Governor XS1
Technical Parameters
1.Rated speed V:1.0~4.0m/s
2.The tensile force F: 1000~2000N
3.Rope diameter:08mm
4.Sheave diameter :0320mm
5.Lift height H:
H≤100m; Tensioning force is 500N
100m
