Machine-roomless Overspeed Governor XSW

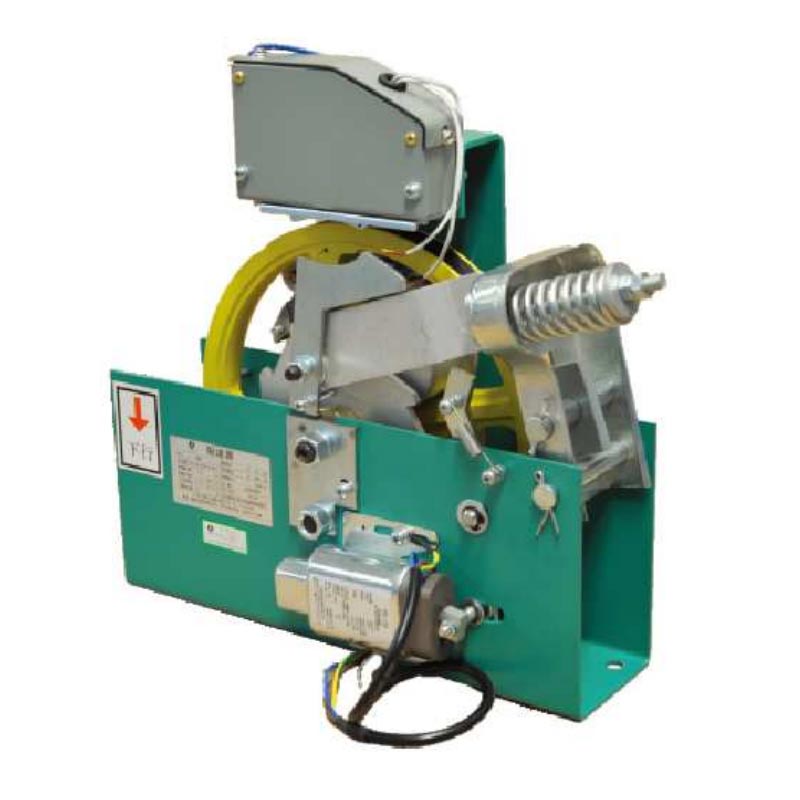

XSW Machine-roomless Overspeed Governor
Technical Parameters
1.Rated speed:0.4-2.5m/s
2.The tensile force: 800~1800N
3.Rope diameter: 08mm
4.Sheave diameter: 0240mm
5.Car Travel:
a)Tensioning force is 250N: H≤60m
b)Tensioning force is 350N:60m
Switch magnet voltage grade:DC24V or AC220V
Action magnet voltage grade:DC24V or AC220V
7.The standard tension device is BZJ01,the optional tension device please see tension device section
Machine-roomless Overspeed Governor XS200/XS250/XS300
| Parameters of switches and electromagnets | Voltage |
| Standard Communication | 220V |
| Optional DC | 24V |
| Type |
(m/s) Rated speed |
HD(mm) Sheave diameter |
(mm) Rope dia. |
HA(mm) Height |
HE(mm) Wide |
HB(mm) | HC(mm) |
(N) The tensile force |
| XS200 | ≤1.5 | 0200 | 06 | 293 | 220 | 113 | 40.5 | 600~1800 |
| XS250 | 1.5~1.75 | 0250 | 08 | 318 | 270 | 115 | 41.5 | 800~2200 |
| XS300 | 1.5~2.0 | 0300 | 08 | 338 | 320 | 115 | 41.5 | 800~2200 |
