Buffer YHB
YHB/175 Sheet of Technical Parameter
| Buffer stroke H(mm) | 175 | |
| Rated speed(m/s) | ≤1.6 | |
| Minimum mass (kg) | 600 | |
| Maximum mass(kg) | 3500 | |
| Free height H1(mm) | 540 | |
| Mounting dimensions | (mm)150x100 | |
| (mm) 4-014 | ||

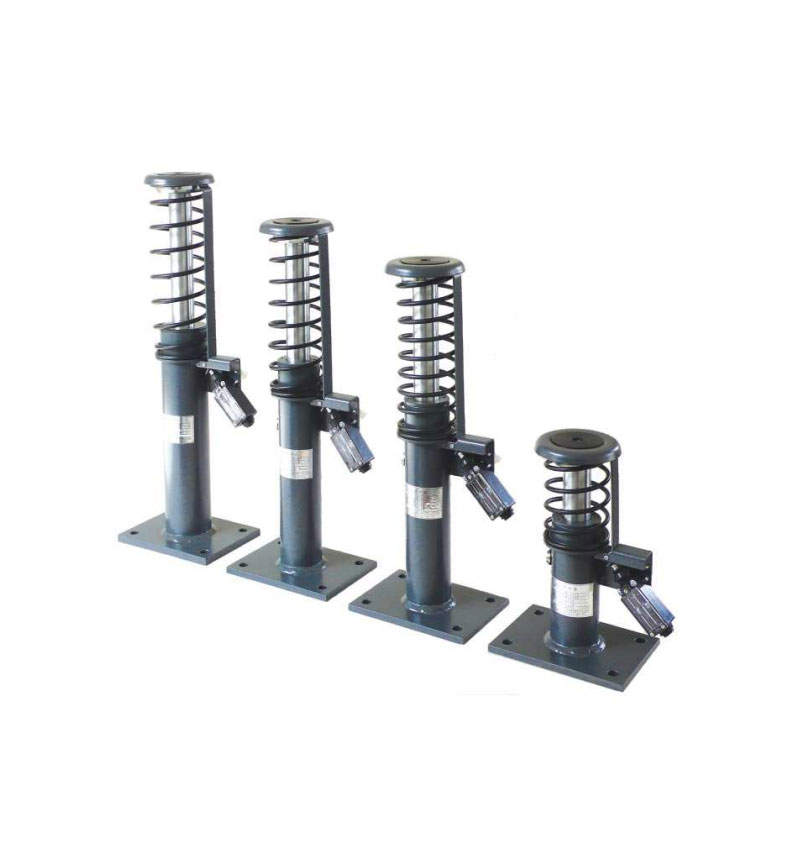

YHB Hydraulic Buffer
| Type |
H(mm) Buffer stroke |
H1(mm) Free height |
(m/s) Rated speed |
(Kg) Minimum mass |
(Kg) Maximum mass |
Certification |
| YHB/70 | 70 | 285 | ≤1.0 | 600 | 3500 | GB CE |
| YHB/160 | 160 | 500 | ≤1.5 | 600 | 3500 | GB CE |
| YHB/175 | 175 | 540 | ≤1.6 | 600 | 3500 | GB |
| YHB/210 | 210 | 600 | ≤1.75 | 600 | 3500 | GB CE |
Buffer YHB No refueling series
Characteristic
Fully sealed structure
No fuel consumption
No refueling on site, easy to operate
Green and environmentally friendly
Characteristic
Fully sealed structure
No fuel consumption
No refueling on site, easy to operate
Green and environmentally friendly
YHB/175M Sheet of Technical Parameter
| Buffer stroke H(mm) | 175 | |
| Rated speed(m/s) | ≤1.6 | |
| Minimum mass (kg) | 600 | |
| Maximum mass(kg) | 3500 | |
| Free height H1(mm) | 540 | |
| Mounting dimensions | (mm)150x100 | |
| (mm) 4-014 | ||
YHB Hydraulic Buffer
| Type |
H(mm) Buffer stroke |
H1(mm) Free height |
(m/s) Rated speed |
(Kg) Minimum mass |
(Kg) Maximum mass |
| YHB/70M | 70 | 285 | ≤1.0 | 600 | 3500 |
| YHB/160M | 160 | 500 | ≤1.5 | 600 | 3500 |
| YHB/175M | 175 | 540 | ≤1.6 | 600 | 3500 |
| YHB/210M | 210 | 600 | ≤1.75 | 600 | 3500 |
Buffer YHB
YHB/275 Sheet of Technical Parameter
| Buffer stroke H(mm) | 275 | |
| Rated speed(m/s) | ≤2.0 | |
| Minimum mass (kg) | 860 | |
| Maximum mass(kg) | 3500 | |
| Free height H1(mm) | 780 | |
| Mounting dimensions | (mm)150x100 | |
| (mm) 4-014 | ||
YHB Hydraulic Buffer
| Type |
H(mm) Buffer stroke |
H1(mm) Free height |
(m/s) Rated speed |
(Kg) Minimum mass |
(Kg) Maximum mass |
| YHB/275 | 275 | 780 | ≤2.0 | 860 | 3500 |
| YHB/435 | 435 | 1132 | ≤2.5 | 860 | 4550 |
Buffer YHA
YHA/275 Sheet of Technical Parameter
| Buffer stroke H(mm) | 275 | |
| Rated speed(m/s) | ≤2.0 | |
| Minimum mass (kg) | 860 | |
| Maximum mass(kg) | 3500 | |
| Free height H1(mm) | 786 | |
| Mounting dimensions | (mm)150x100 | |
| (mm) 4-014 | ||
YHA Hydraulic Buffer
| Type |
H(mm) Buffer stroke |
H1(mm) Free height |
(m/s) Rated speed |
(Kg) Minimum mass |
(Kg) Maximum mass |
Certification |
| YHA/80 | 80 | 314 | ≤1.0 | 600 | 3500 | GB |
| YHA/210 | 210 | 600 | ≤1.75 | 600 | 3500 | GB |
| YHA/275 | 275 | 786 | ≤2.0 | 860 | 3500 | GB CE |
| YHA/425 | 425 | 1128 | ≤2.5 | 860 | 3500 | GB CE |
Buffer YH2
YH2/270 Sheet of Technical Parameter
| Buffer stroke H(mm) | 270 | |
| Rated speed(m/s) | ≤2.0 | |
| Minimum mass (kg) | 900 | |
| Maximum mass(kg) | 4550 | |
| Free height H1(mm) | 765 | |
| Mounting dimensions | (mm)150x100 | |
| (mm) 4-014 | ||
YH2 Hydraulic Buffer
| Type |
H(mm) Buffer stroke |
H1(mm) Free heght |
(m/s) Rated speed |
(Kg) Minimum mass |
(Kg) Maximum mass |
| YH2/210 | 210 | 622.5 | ≤1.75 | 900 | 4550 |
| YH2/270 | 270 | 765 | ≤2.0 | 900 | 4550 |
| YH2/435 | 435 | 1135.5 | ≤2.5 | 900 | 4550 |
Buffer YH/830 1080 1122
YH/1080 Sheet of Technical Parameter
| Buffer stroke H(mm) | 1080 | |
| Rated speed(m/s) | ≤4.0 | |
| Minimum mass (kg) | 1250 | |
| Maximum mass(kg) | 4550 | |
| Free height H1(mm) | 2910 | |
| Mounting dimensions | (mm)200x150 | |
| (mm) 4-017.5 | ||
YH Hydraulic Buffer
| Type |
H(mm) Buffer stroke |
H1(mm) Free Height |
(m/s) Rated speed |
(Kg) Mininum mass |
(Kg) Maximun mass |
Certification |
| YH/830 | 830 | 2260 | ≤3.5 | 900 | 4550 | GB CE |
| YH/1080 | 1080 | 2910 | ≤4.0 | 1250 | 4550 | GB CE |
| YH/1122 | 1122 | 2994 | ≤4.07 | 1700 | 5000 | GB |
Buffer YH/1491
YH/1491 Sheet of Technical Parameter
| Buffer stroke H(mm) | 1491 | |
| Rated speed(m/s) | ≤4.7 | |
| Minimum mass (kg) | 2500 | |
| Maximum mass(kg) | 5000 | |
| Free height H1(mm) | 3732 | |
| Mounting dimensions | (mm)200x150 | |
| (mm) 4-022 | ||
YH Hydraulic Buffer
| Type |
H(mm) Buffer stroke |
H1(mm) Free Height |
(m/s) Rated speed |
(Kg) Minimun mass |
(Kg) Maximum mass |
| YH/1491 | 1491 | 3732 | ≤4.7 | 2500 | 5000 |
