Tension Device CZJ01/CZJ02
Sheet of Technical Parameter
| Type | CZJ01/03 | CZJ02/04 |
| Sheave diameter(mm) | 0240 | 0240 |
| Rope diameter(mm) | 08 | 08 |
| Tensioning force (N) | 335 | 201 |
| Car travel(m) | H≤80 | H≤50 |
| Counterweight(Kg) | 30kg | 18kg |
1)Ancillary governor model XS3 XSW XS3A XS3B
2)This weight is made of composite
2)This weight is made of composite
Tension Device CZJ03/CZJ04

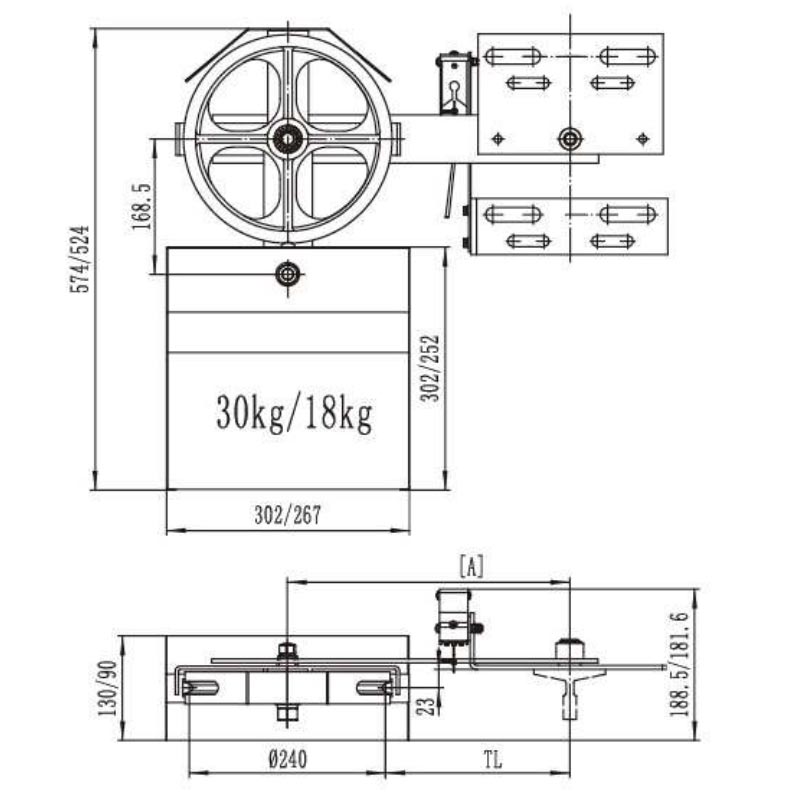

CZJ01/CZJ02/CZJ03/CZJ04 Tension Device
| NO. | [A] | Type for guide rail | Adjustable scope of TL(mm) |
| L01 | 291 | T75 | 159~183 |
| L02 | T78 | 157~185 | |
| L03 | T89 | 152~190 | |
| L04 | T114 | 150~192 | |
| L05 | T127 | 148~194 | |
| L06 | 313 | T75 | 181~205 |
| L07 | T78 | 179~207 | |
| L08 | T89 | 174~212 | |
| L09 | T114 | 172~214 | |
| L10 | T127 | 170~216 | |
| L11 | 351 | T75 | 219~243 |
| L12 | T78 | 217~245 | |
| L13 | T89 | 212~250 | |
| L14 | T114 | 210~252 | |
| L15 | T127 | 208~254 | |
| L16 | 365 | T75 | 233~257 |
| L17 | T78 | 231~259 | |
| L18 | T89 | 226~264 | |
| L19 | T114 | 224~266 | |
| L20 | T127 | 222~268 |
Tension Device CZJ13
Sheet of Technical Parameter
| Type | CZJ13 | |
| Sheave diameter(mm) | 0240 | |
| Rope diameter(mm) | 08 | |
| Tensioning force(N) | 335 | 201 |
| Car travel(m) | H≤80 | H≤50 |
| Counterweight(Kg) | 30kg | 18kg |

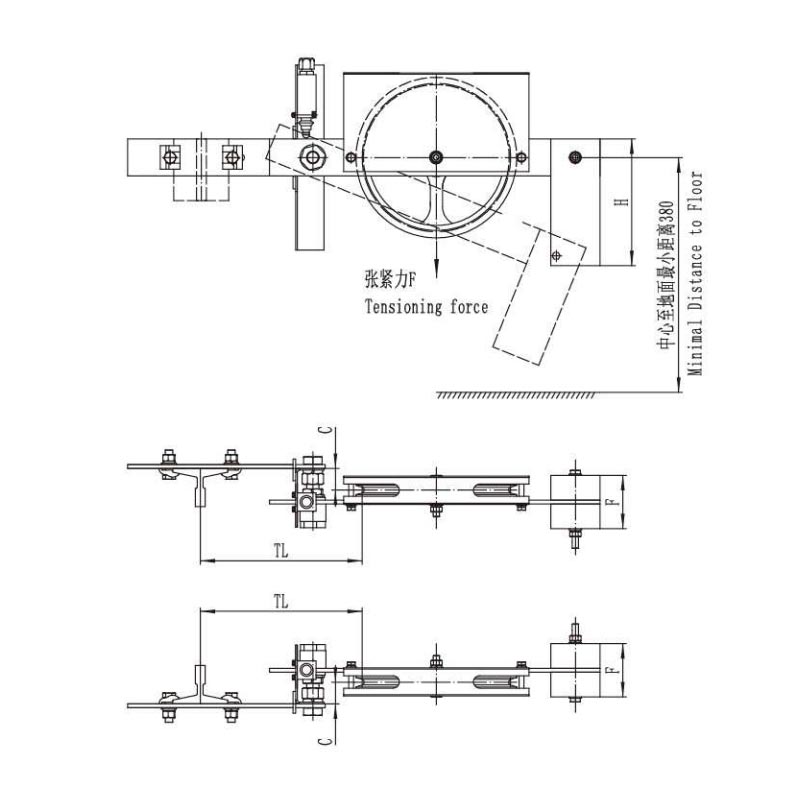

CZJ13 Tension Device
| NO. | A | Type for guide rail | Adjustable scope of TL(mm) | NO. | A | Type for guide rail | Adjustable scope of TL(mm) |
| L01 | 295 | T75 | 163~187 | L01 | 345 | T75 | 213~237 |
| L02 | T78 | 161~189 | L02 | T78 | 211~239 | ||
| L03 | T89 | 156~195 | L03 | T89 | 206~244 | ||
| L04 | T114 | 154~196 | L04 | T114 | 204~246 | ||
| L05 | T127 | 152~198 | L05 | T127 | 202~248 | ||
| L06 | 320 | T75 | 188~212 | L06 | 370 | T75 | 238~262 |
| L07 | T78 | 186~214 | L07 | T78 | 236~264 | ||
| L08 | T89 | 181~219 | L08 | T89 | 231~269 | ||
| L09 | T114 | 179~221 | L09 | T114 | 229~271 | ||
| L10 | T127 | 177~223 | L10 | T127 | 227~273 |
Tension Device CZJ14
Sheet of Technical Parameter
| Type | CZJ14 |
| Sheave diameter(mm) | 0200 |
| Rope diameter(mm) | 06 |
| Tensioning force(N) | 204 |
| Car travel(m) | H≤80 |
| Counterweight(Kg) | 38kg |
CZJ14 Tension Device
| NO. | Material | [B] | [C] | [D] | [E] | Type for guide rail | Adjustable scope of TL(mm) |
| 1 | Ore conerete | 230 | 400 | 140 | 626 |
T75/B T78/B T82/B T89/B T90/B |
145-215 |
| 2 | Steel plate | 230 | 225 | 120 | 465 |
T75/B T78/B T82/B T89/B T90/B |
145-215 |
| 3 | Ore conerete | 230 | 400 | 140 | 626 | T114 | 150-210 |
| 4 | Steel plate | 230 | 225 | 120 | 465 | T114 | 150-210 |
Tension Device CZJ12
Sheet of Technical Parameter
Sheave diameter (mm): 0240
Rope diameter (mm): 08
Ancillary governor model XS3 XS3A XSW
Rope diameter (mm): 08
Ancillary governor model XS3 XS3A XSW
CZJ12 Tension Device
| NO. | Type for guide rail |
TL (mm) |
L (mm) |
| L01 | T90 T89 | 205 | 611 |
| L02 | 240 | 646 | |
| L03 | T114 T127 | 290 | 701 |
