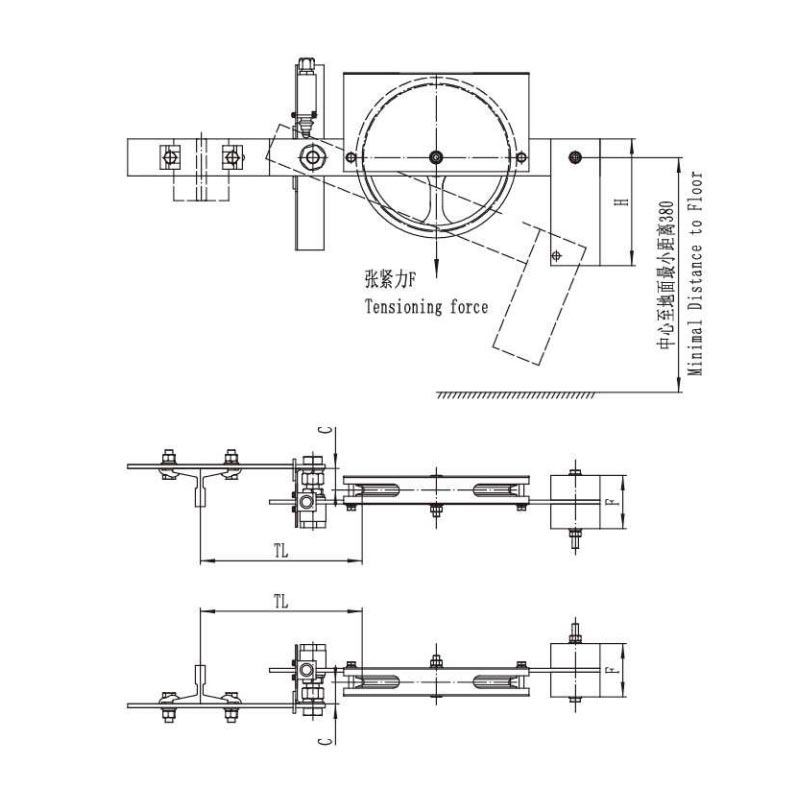

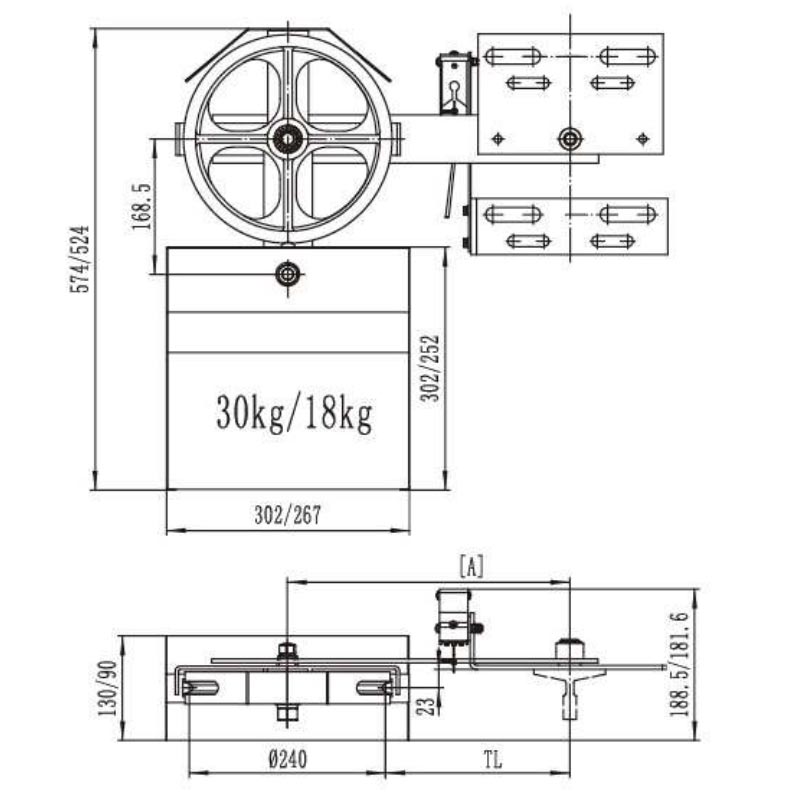

Tension Device BZJ01
Sheet of Technical Parameter
Sheave diameter(mm): 0240
Rope diameter (mm): 08
Ancillary governor model XS3 XS3A XS3B
Sheave diameter(mm): 0240
Rope diameter (mm): 08
Ancillary governor model XS3 XS3A XS3B
BZJ01 Tension Device
| NO. |
E(kg) Counterweight |
Material |
C(m) | FXH(mm) |
(m) Car travel |
F(N) Tensioning force |
TL(mm) Type for guide rail |
| L01 | 10 |
Steel plate |
20-48 | 86X205 | H<60 | 250 |
T75 183.5-250.5,283.5-350.5 T78 182-252,282-352 T89 184.5-256.5,277.5-356.5 |
| L02 | 15 | 86x231 | 60<H≤80 | 350 | |||
| L03 | 20 | 20-44 | 86x272 | 80<H≤120 | 450 | ||
| L04 | 10 | 20-48 | 86x205 | E660 | 250 |
T75 243.5-300.5 T78 242-302 T89 244.5-299.5 |
|
| L05 | 15 | 86x231 | 60<H≤80 | 350 | |||
| L06 | 20 | 20-44 | 86x272 | 80<H≤120 | 450 | ||
| L07 | 10 | 20-48 | 86x205 | B≤60 | 250 |
T114 200-290 T127 210-283.5 |
|
| L08 | 15 | 86x231 | 60<H≤80 | 350 | |||
| L09 | 20 | 20-44 | 86x272 | 80<H≤120 | 450 | ||
| L10 | 17 |
Ore comerete |
20-48 | 100x266 | 60<H≤80 | 400 |
T75 183.5-250.5,283.5-350.5 T78 182-252,282-352 T89 184.5-256.5,277.5-356.5 |
| L11 | 20 | 20-44 | 80<H≤120 | 450 | |||
| L12 | 17 | 20-48 | 60<1≤80 | 400 |
T75 243.5-300.5 T78 242-302 T89 244.5-299.5 |
||
| L13 | 20 | 20-44 | 80<H≤120 | 450 | |||
| L14 | 17 | 20-48 | 60<H≤80 | 400 |
T114 200-290 T127 210-283.5 |
||
| L15 | 20 | 20-44 | 80<H≤120 | 450 |

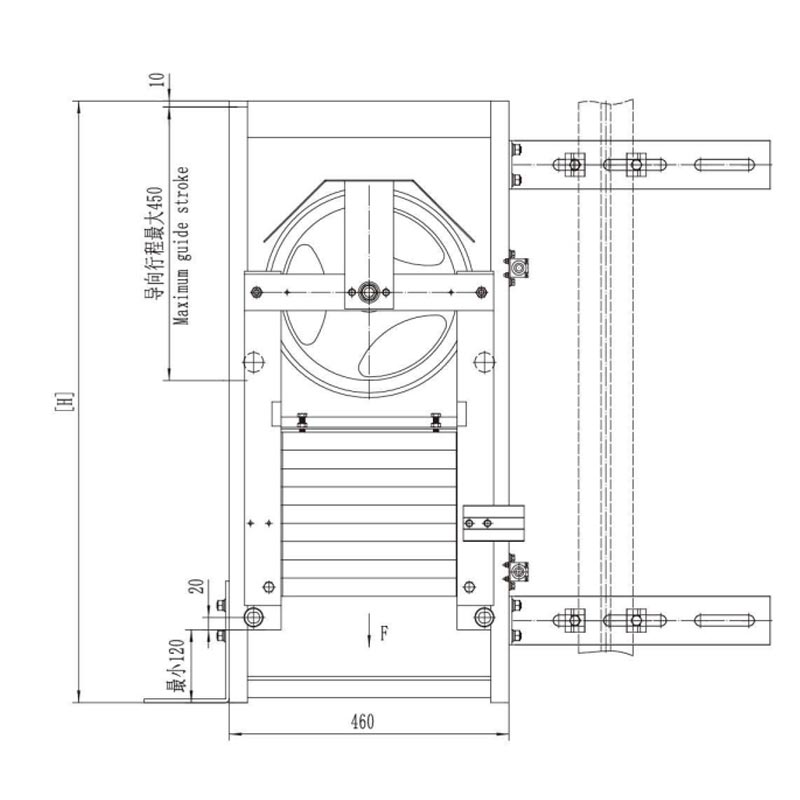

Tension Device BZJ09
Sheet of Technical Parameter
Sheave diameter(mm): 0240
Rope diameter (mm): 08
Ancillary governor model XS3 XS3A XS3B
Sheave diameter(mm): 0240
Rope diameter (mm): 08
Ancillary governor model XS3 XS3A XS3B
BZJ09 Tension Device
| NO. |
(KG) Counterweight |
CXDXE |
H(m) Car travel(m) |
Type for guide rail |
| 1 | 10 | 80x86x205 | H≤60 |
T78、T75、 T89、T89-1 T90、 |
| 2 | 15 | 103x86x231 | 60<H≤80 | |
| 3 | 20 | 122X86X272 | 80<H≤120 | |
| 4 | 10 | 80x86x205 | H≤60 | T114 |
| 5 | 15 | 103x86x231 | 60<H≤80 | |
| 6 | 20 | 122X86X272 | 80<H≤120 |
Tension Device BZJ02
BZJ02 Tension Device
| NO. | Type for guide rail |
TL(mm) Distance between rope center and rail center |
HB (mm) |
HD(mm) Sheave diameter |
| L01 | T78 | 132-281 | 493.5~642.5 | 0200 |
| L02 | 557~706 | 0250 | ||
| L03 | 608~757 | 0300 | ||
| L04 | T89 | 137-275 | 498.5~636.5 | 0200 |
| L05 | 562~700 | 0250 | ||
| L06 | 613~751 | 0300 | ||
| L07 | T114 | 158~306 | 519.5~667.5 | 0200 |
| L08 | 583~731 | 0250 | ||
| L09 | 634~776 | 0300 | ||
| L10 | T127 | 164~300 | 525.5~331.5 | 0200 |
| L11 | 589~725 | 0250 | ||
| L12 | 640~776 | 0300 | ||
| L13 | T140 | 185~215 | 546.5~576.5 | 0200 |
| L14 | 661~691 | 0300 |
Tension Device BZJ03
BZJ03 Tension Device
| NO. | Type for guide rail |
(kg) Counterweight |
HD(mm) Sheave diameter |
HA (mm) |
HB (mm) |
| L01 | T75 T89 | 15、20 | 0200 | 140 | 438.5 |
| L02 | 0250 | 165 | 467 | ||
| L03 | 0300 | 190 | 553 | ||
| L04 | T114 | 0200 | 140 | 438.5 | |
| L05 | 0250 | 165 | 467 | ||
| L06 | 0300 | 190 | 553 |
| Type | M | N |
| BZJ03 | 230±10 | 13.5 |
| 133.5±10 | 36.5 |
Ancillary governor model XS200 or XS300
