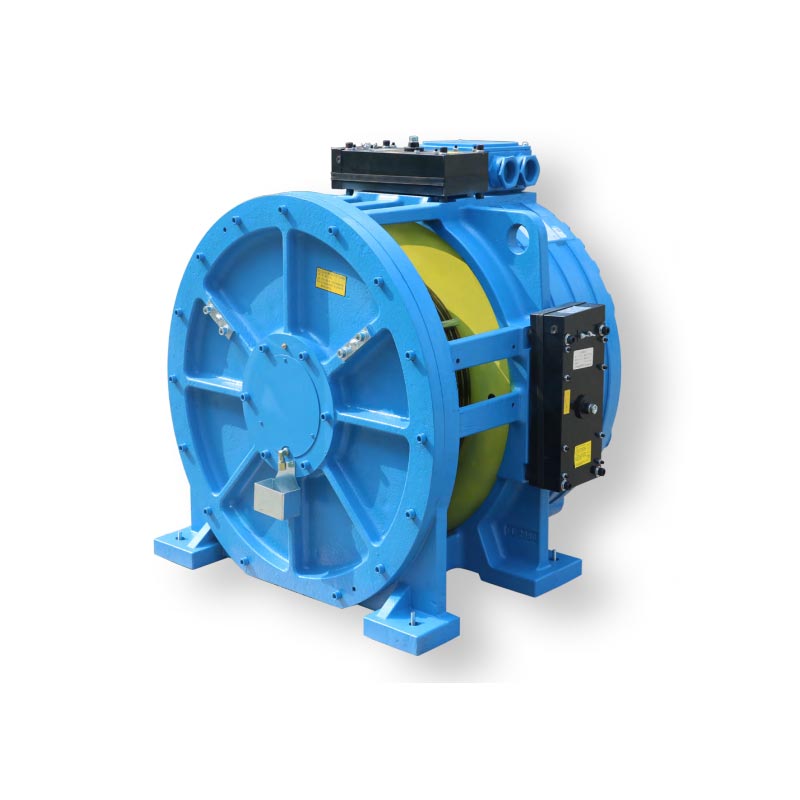

WJC-5000 (520mm SHEAVE) SERIES MACHINES
| Capacity | 3500kg~5000kg |
| Wrap | Single wrap |
| Rotor | External rotor |
| Undercut | U |
| Foot Pad Flatness | < 0.5mm |
| Protection Rating | IP40 |
| Poles | 40 |
| Insulation Class | F |
| Duty Cycle | S5-40％ | 30％ |
| Motor Rated Voltage | AC380V |
| Brake | Block |
| Picking/Holding Voltage | DC110V |
Full-wave rectification power source for brake
| Model |
Capacity kg |
Elevator Speed m/s |
Rated Output KW |
Rated Current A |
Rated Speed rpm |
Frequency Hz |
Sheave Diameter mm |
Torque Nm |
Ropes |
Groove Dist. mm |
Cut Angle | Groove Angle | Roping |
Shaft Load kg |
Handle Wheel | Remote Release |
Inertia kg m^2 |
Weight kg |
| WJC-3500-100 | 3500 | 1.0 | 23.3 | 50.0 | 73 | 24.5 | 520 | 3026 | 12-Φ13 | 20 | β=95° | γ=30° | 2:1 | 10000 | Y | N | 30.6 | 1550 |
| WJC-3500-150 | 1.5 | 34.9 | 74.5 | 110 | 36.7 | |||||||||||||
| WJC-3500-160 | 1.6 | 37.3 | 86.0 | 118 | 39.2 | |||||||||||||
| WJC-3500-175 | 1.75 | 40.7 | 129 | 42.8 | ||||||||||||||
| WJC-3500-200 | 2.0 | 46.6 | 105.0 | 147 | 49.0 | |||||||||||||
| ★ WJC-3500-300 | 3.0 | 69.8 | 148.0 | 220 | 73.5 | 32.3 | 1590 | |||||||||||
| WJC-4000-100 | 4000 | 1.0 | 26.6 | 58.0 | 73 | 24.5 | 520 | 3459 | 12-Φ13 | 20 | β=95° | γ=30° | 2:1 | 15000 | Y | N | 32.3 | 1590 |
| WJC-4000-150 | 1.5 | 39.9 | 87.0 | 110 | 36.7 | |||||||||||||
| WJC-4000-160 | 1.6 | 42.6 | 105.0 | 118 | 39.2 | |||||||||||||
| WJC-4000-175 | 1.75 | 46.6 | 129 | 42.8 | ||||||||||||||
| WJC-4000-200 | 2.0 | 53.2 | 117.0 | 147 | 49.0 | |||||||||||||
| ★ WJC-4000-300 | 3.0 | 79.8 | 172.0 | 220 | 73.5 | |||||||||||||
| ★ WJC-5000-100 | 5000 | 1.0 | 33.3 | 72.0 | 73 | 24.5 | 520 | 4324 | 12-Φ13 | 20 | β=95° | γ=30° | 2:1 | 15000 | Y | N | 32.3 | 1590 |
| ★ WJC-5000-150 | 1.5 | 49.9 | 108.0 | 110 | 36.7 | |||||||||||||
| ★ WJC-5000-160 | 1.6 | 53.2 | 131.0 | 118 | 39.2 | |||||||||||||
| ★ WJC-5000-175 | 1.75 | 58.2 | 129 | 42.8 | ||||||||||||||
| ★ WJC-5000-200 | 2.0 | 66.5 | 146.0 | 147 | 49.0 | |||||||||||||
| ★ WJC-5000-300 | 3.0 | 99.8 | 215.0 | 220 | 73.5 | |||||||||||||
| ★ WJC-5500-100 | 5500 | 1.0 | 33.5 | 73.0 | 73 | 24.5 | 520 | 4360 | 12-Φ13 | 20 | β=95° | γ=30° | 2:1 | 15000 | Y | N | 32.3 | 1590 |
| ★ WJC-5500-150 | 1.5 | 50.3 | 109.0 | 110 | 36.7 | |||||||||||||
| ★ WJC-5500-160 | 1.6 | 53.7 | 133.0 | 118 | 39.2 | |||||||||||||
| ★ WJC-5500-175 | 1.75 | 58.7 | 129 | 42.8 | ||||||||||||||
| ★ WJC-5500-200 | 2.0 | 67.1 | 147.0 | 147 | 49.0 | |||||||||||||
| ★ WJC-5500-250 | 2.5 | 83.8 | 166.0 | 184 | 61.2 | |||||||||||||
| ★ WJC-5500-300 | 3.0 | 100.6 | 217.0 | 220 | 73.5 | |||||||||||||
| WJC-3500-100 | 3500 | 1.0 | 23.3 | 61.5 | 60 | 19.9 | 640 | 3725 | 12-Φ13 | 20 | β=95° | γ=30° | 2:1 | 10000 | Y | N | 37. 2 | 1550 |
| WJC-3500-150 | 1.5 | 34.9 | 92.0 | 90 | 29.8 | |||||||||||||
| WJC-3500-160 | 1.6 | 37.3 | 106.0 | 95 | 31.8 | |||||||||||||
| WJC-3500-175 | 1.75 | 40.7 | 104 | 34.8 | ||||||||||||||
| WJC-3500-200 | 2.0 | 46.6 | 129.0 | 119 | 39.8 | |||||||||||||
| ★ WJC-3500-300 | 3.0 | 69.8 | 182.0 | 179 | 59.7 | 1590 | ||||||||||||
| WJC-4000-100 | 4000 | 1.0 | 26.6 | 71.0 | 60 | 19.9 | 640 | 4257 | 12-Φ13 | 20 | β=95° | γ=30° | 2:1 | 15000 | Y | N | 37.2 | 1590 |
| WJC-4000-150 | 1.5 | 39.9 | 107.0 | 90 | 29.8 | |||||||||||||
| WJC-4000-160 | 1.6 | 42.6 | 129.0 | 95 | 31.8 | |||||||||||||
| WJC-4000-175 | 1.75 | 46.6 | 104 | 34.8 | ||||||||||||||
| WJC-4000-200 | 2.0 | 53.2 | 144.0 | 119 | 39.8 | 1680 |
Notes:
1.The brake picking/holding voltage is DC110V. Voltage switch is not necessary.
2.With “★ ” mark, the duty cycle is S5-30%.
3.Regen drive application, please consult with us, then order with notes.
