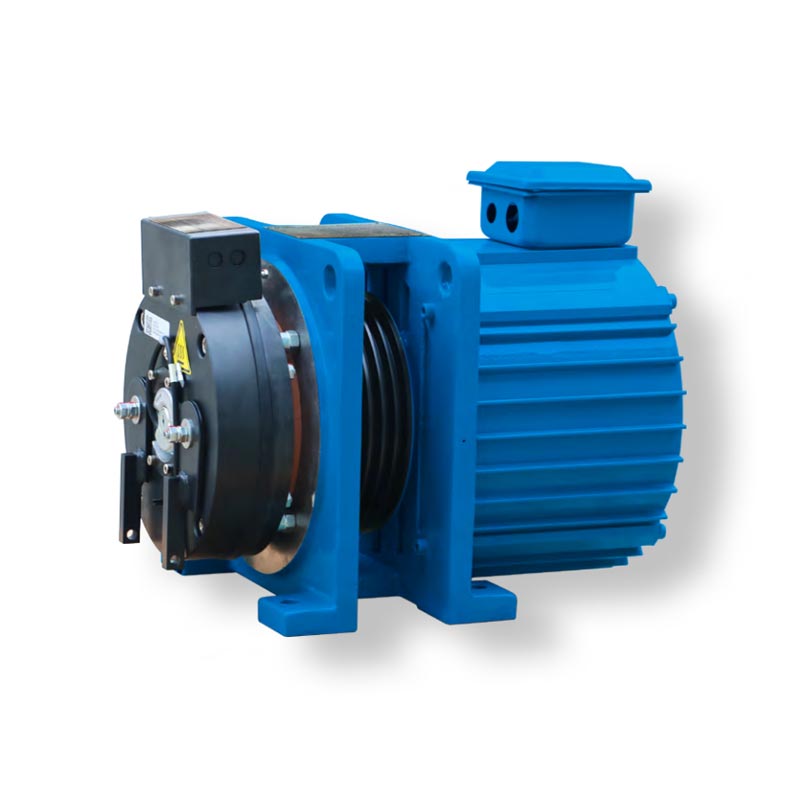

V1-D Series Machines
| Capacity | 250kg-450kg |
| Wrap | Single Wrap |
| Rotor | Internal rotor |
| Undercut | U |
| Foot Pad Flatness | < 0.5mm |
| Protection Rating | IP40 |
| Insulation Class | F |
| Poles | 16 |
| Duty Cycle | S5-25％ |
| Brake | Plate |
| Picking/Holding Voltage | DC110V |
Full-wave rectification power source for brake
| Model |
Capacity kg |
Elevator Speed m/s |
Rated Output kW |
Rated current Volt-age220V |
Rated current Volt-age380V |
Rated Speed rpm |
Frequency Hz |
Sheave Diameter mm |
Torque Nm |
Ropes |
Groove Dist. mm |
Cut Angle | Groove Angle | Roping |
Shaft Load kg |
Handle Wheel | Remote Release |
Inertia kg m^2 |
Weight kg |
| VL-250-40-D | 250 | 0.4 | 0.67 | 6.1 | 3.5 | 76 | 10.2 | 200 | 83 | 3-Φ8 | 12 | β=90° | γ=30° | 2:1 | 1500 | N | Y/N | 0.2 | 110 |
| VL-250-63-D | 0.63 | 1.1 | 120 | 16.0 | |||||||||||||||
| VL-250-100-D | 1.0 | 1.7 | 191 | 25.5 | |||||||||||||||
| VL-320-40-D | 320 | 0.4 | 0.85 | 7.4 | 4.3 | 76 | 10.2 | 200 | 105 | 3-Φ8 | 12 | β=90° | γ=30° | 2:1 | 1500 | N | Y/N | 0.2 | 110 |
| VL-320-63-D | 0.63 | 1.3 | 120 | 16.0 | |||||||||||||||
| VL-320-100-D | 1.0 | 2.1 | 191 | 25.5 | |||||||||||||||
| VL-400-40-D | 400 | 0.4 | 1.1 | 9.9 | 5.7 | 76 | 102 | 200 | 133 | 3-Φ8 | 12 | β=90° | γ=30° | 2:1 | 1500 | N | Y/N | 0.2 | 110 |
| VL-400-63-D | 0.63 | 1.7 | 120 | 16.0 | |||||||||||||||
| VL-400-100-D | 1.0 | 2.7 | 191 | 25.5 | |||||||||||||||
| VL-450-40-D | 450 | 0.4 | 12 | 11.2 | 6.5 | 76 | 102 | 200 | 150 | 4-Φ8 | 12 | β=90° | γ=30° | 2:1 | 1500 | N | Y/N | 0.2 | 110 |
| VL-450-63-D | 0.63 | 1.9 | 120 | 16.0 | |||||||||||||||
| VL-450-100-D | 1.0 | 3.0 | 191 | 25.5 |
Notes:
1.The brake picking/holding voltage is DC110V. Voltage switch is not necessary.
2.Regen drive application, please consult with us, then order with notes.
