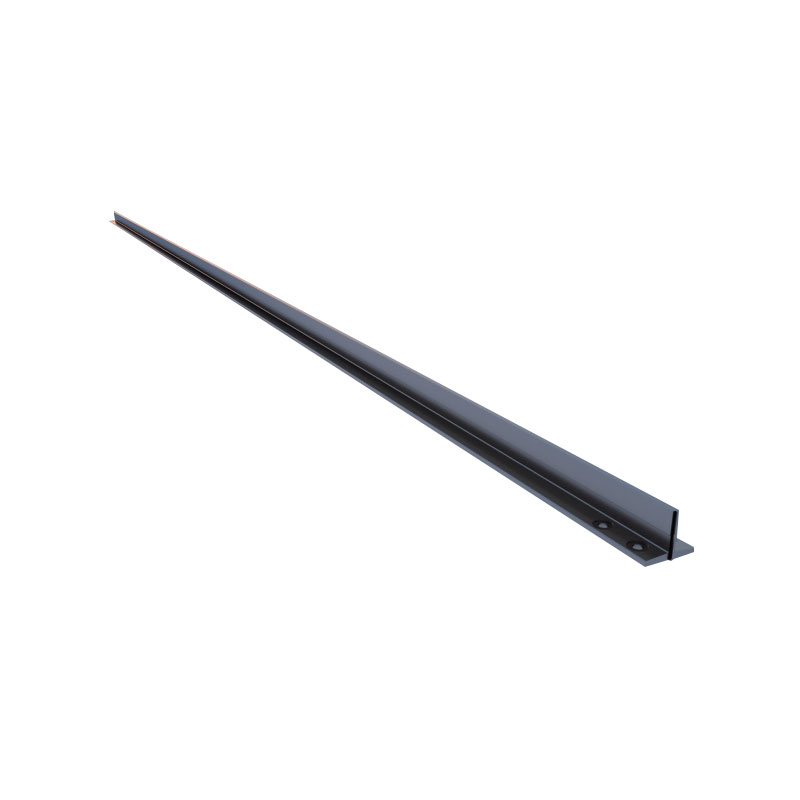

T Type Elevator Guide Rail
  • T Type Elevator Guide RailT Type Elevator Guide Rail

T Type Elevator Guide Rail

■ The T Type Elevator Guide Rail fully adopt the Full-Automatic Production Line such as drawing CNC Gantry planer, CNC finish machining , automatic straightening and shaping.All kinds of products have complete specifications and excellent quality. Now they have formed two series of ordinary precision and high precision.
Send Inquiry
Product Description
You can rest assured to buy T Type Elevator Guide Rail from our factory.
COLD-DRAWN RAIL - GRADE A

Performance Parameter


Conforming to ISO7465 standard, adapting to elevator running speed ≤ 1 m/s.

Dimensions
Designation b1 h1 k p rs 12g 13g d b3
Tolerance
±1 ±2 ±0.15 ±0.5 - ±0.2 ±0.2
±0.2
T45/A 45 45 5 5 1 65 15 9 25
T50/A 50 50 5 5 1 75 25 9 30

Distance between holes, fishplates and bolts(mm)
Designation
T45/A 		d b2 b3 11 12 13 V Bolt Washer
- - ±0.2 ±30 ±0.2 ±0.2 ±30 - -
9 50 25 160 65 15 8 M8x25 A-8
T50/A 9 50 30 200 75 25 8 M8x25 A-8

Technical Characteristics
Designation
T45/A 		S q1 e lx-x Wx-x lx-x ly-y Wy-y 1y-y
cm² kg/m cm cm⁴ cm³ cm cm⁴ cm³ cm
4.25 3.34 1.31 8.08 2.53 1.38 3.84 1.71 0.95
T50/A 4.75 3.73 1.43 11.24 3.15 1.54 5.25 2.1 1.05

Performance Parameter



Key parameter of guide rails
Designation Paramete IA
Tolerance/
1.0 m/s max.
Roughnes Ra Long.
Ra Tansv. 		1.6 um~6.3um
1.6 um~6.3 um
Straightness Straightness f/m max.
f/5m max. 		0.7mm
3.5mm
Twist Twist R max. 2mm/5m
Angle Angle Smax.
sq1
Sq2 		±0.10mm
±0.20mm
±0.20mm
Parallelism Parallelism |h-h2| -
Centering Centering |a-b| 0.10mm
Maximum clearancefor connectio Maximum clearancefor connectio C max. 0.15mm


MACHINED GUIDE RAIL - GRADE B

Performance Parameter


Conforming to ISO7465 standard, adapting to elevator running speed ≤ 1.6 m/s.

Dimensions
Designation
B Class 		b1 h1 h k n c f g rs m1 m2 u1 u2 l
Tolerance
±1.5 ±0.75 ±1 ±0.10 ±30 - ±0.75 ±0.75 - +0.060 0-0.06 ±0.1 ±0.1 +30
T70/B 70 65 64 9 34 6 8 6 1.5 3 2.97 3.5 3 128
T75/B 75 62 61 10 30 8 9 7 3 3 2.97 3.5 3 138
T78/B 78 56 55 10 26 7 8.5 6 2.5 3 2.97 3.5 3 138
T82/B 82 68 66.6 9 34 7.5 8.25 6 3 3 2.97 3.5 3 111
T89/B 89 62 61 16 34 10 11.1 7.9 3 6.4 6.37 7.14 6.35 156
T90/B 90 75 74 16 42 10 10 8 4 6.4 6.37 7.14 6.35 156
T114/B 114 89 88 16 38 9.5 11 8 4 6.4 6.37 7.14 6.35 156
T127-1/B 127 89 88 16 45 10 11 8 4 6.4 6.37 7.14 6.35 156
T127-2/B 127 89 88 16 51 10 15.9 12.7 5 6.4 6.37 7.14 6.35 156
T140-1/B 140 108 107 19 51 12.7 15.9 12.7 5 6.4 6.37 7.14 6.35 193
T140-2/B 140 102 101 28.6 51 17.5 17.5 14.5 5 6.4 6.37 7.14 6.35 193
T140-3/B 140 127 126 31.75 57 19 25.4 14.5 5 6.4 637 7.14 6.35 193

Performance Parameter



Distance between holes, fishplates and bolts(mm)
Designation
T70/B 		d d1 b2 b3 11 12 l3 V Bolt Washer
- - - ±0.20 ±30 ±0.20 ±0.20 ±30 - -
13 26 70 42 250 105 25 10 M12x35 A-12
T75/B 13 26 70 42 250 105 25 10 M12x35 A-12
T78/B 13 26 70 42 250 105 25 10 M12x35 A-12
T82/B 13 26 80 50.8 246 81 27 10 M12x35 A-12
T89/B 13 26 90 57.2 305 114.3 38.1 13 M12x35 A-12
T90/B 13 26 90 57.2 305 114.3 38.1 13 M12x35 A-12
T114/B 17 33 120 70.0 305 114.3 38.1 17 M16x50 A-16
T127-1/B 17 33 130 79.4 305 114.3 38.1 17 M16x50 A-16
T127-2/B 17 33 130 79.4 305 114.3 38.1 17 M16x50 A-16
T140-1/B 21 40 140 92.1 380 152.4 31.8 28 M20x65 A-20
T140-2/B 21 40 140 92.1 380 152.4 31.8 28 M20x65 A-20
T140-3/B 21 40 140 92.1 380 152.4 31.8 38 M20x65 A-20

Technical Characteristics
Designation
T70/B 		S q1 E IX-X WX-X IX-X Iy-y Wy-y Iy-y
c㎡ kg/m cm cm⁴ cm³ cm cm⁴ cm³ cm
9.51 7.47 2.04 41.30 9.24 2.09 18.65 5.35 1.4
T75/B 10.91 8.564 1.861 40.29 9.286 1.921 26.47 7.06 1.557
T78/B 9.847 7.73 1.645 29.92 7.564 1.743 26.39 6.766 1.637
T82/B 10.91 8.54 1.998 449.31 10.27 2.216 30.17 7.358 1.663
T89/B 15.77 12.38 2.032 59.83 14.35 1.948 52.41 11.78 1.823
T90/B 17.25 13.54 2.612 102 20.86 2.431 52.48 11.66 1.744
T114/B 20.89 16.4 2.865 179.3 29.7 2.93 108.6 19.05 2.28
T127-1/B 22.74 17.85 1.77 187.9 30.65 3.065 149.9 23.61 2.361
T127-2/B 28.72 22.55 2.478 201.7 31.17 3.64 229.9 36.2 2.829
T140-1/B 35.15 27.59 3.236 403.3 53.32 3.387 309.7 44.24 2.968
T140-2/B 43.21 33.92 3.484 456.7 68.01 3.251 358.2 51.18 2.879
T140-3/B 57.52 45.15 4.418 947.5 114.4 4.059 466.7 66.67 2.848

Key parameter of guide rails
Designation Paramete /B
Tolerance/
1.6 m/s max.
Roughnes Ra Long.
Ra Tansv. 		1.6 um max
0.8um~3.2um
Straightness Straightness f/m max.
f/5m max. 		0.7mm
3.5mm
Twist Twist R max. 2mm/5m
Angle Angle S max.
sq1
Sq2 		±0.10mm
±0.20mm
±0.20mm
Parallelism Parallelism |h-h2| 0.20 mm
Centering Centering |a-b| 0.10mm
Maximum clearancefor connectio Maximum clearancefor connectio C max. 0.15mm


MACHINED GUIDE RAIL - GRADE BE

Performance Parameter


Conforming to ISO7465 standard, adapting to elevator running speed 1.6-4 m/s.

|Dimensions
Designation
BE Class 		b1 h1 h k n C f g rs m1 m2 u1 u2 l
Tolerance
±1.5 ±0.75 ±0.05 ±0.060 ±30 - ±0.75 ±0.75 - +0.030 0-0.03 ±0.1 ±0.1 +30
T89/BE 89 62 61 16 34 10 11.1 7.9 3 6.4 6.37 7.14 6.35 156
T90/BE 90 75 74 16 42 10 10 8 4 6.4 6.37 7.14 6.35 156
T114/BE 114 89 88 16 38 9.5 11 8 4 6.4 6.37 7.14 6.35 156
T127-1/BE 127 89 88 16 45 10 11 8 4 6.4 6.37 7.14 6.35 156
T127-2/BE 127 89 88 16 51 10 15.9 12.7 5 6.4 6.37 7.14 6.35 156
T140-1/BE 140 108 107 19 51 12.7 15.9 12.7 5 6.4 6.37 7.14 6.35 193
T140-2/BE 140 102 101 28.6 51 17.5 17.5 14.5 5 6.4 6.37 7.14 6.35 193
T140-3/BE 140 127 126 31.75 57 19 25.4 17.5 5 6.4 637 7.14 6.35 193

Distance between holes, fishplates and bolts(mm)
Designation
T89/BE 		d d1 b2 b3 l1 12 13 V Bolt Washer
- - - ±0.20 ±30 ±0.20 ±0.20 ±30 - -
13 26 90 57.2 305 114.3 38.1 22 M12x35 A-12
T90/BE 13 26 90 57.2 305 114.3 38.1 22 M12x35 A-12
T114/BE 17 33 120 70.0 305 114.3 38.1 28 M16x50 A-16
T127-1/BE 17 33 130 79.4 305 114.3 38.1 28 M16x50 A-16
T127-2/BE 17 33 130 79.4 305 114.3 38.1 28 M16x50 A-16
T140-1/BE 21 40 140 92.1 380 152.4 31.8 38 M20x65 A-20
T140-2/BE 21 40 140 92.1 380 152.4 31.8 38 M20x65 A-20
T140-3/BE 21 40 140 92.1 380 152.4 31.8 48 M20x65 A-20


MACHINED GUIDE RAIL - GRADE BEE

Performance Paramete



Technical Characteristics
Designation
T125/BEE 		S q1 E IX-X WX-X IX-X Iy-y Wy-y Iy-y
c㎡ kg/m cm cm⁴ cm³ cm cm⁴ cm³ cm
22.82 17.91 2.430 151.00 26.16 2.572 159.1 25.46 2.641
T127-1/BEE 22.74 17.85 2.77 187.9 30.65 3.065 149.9 23.61 2.361
T127-2/BEE 28.72 22.55 2.478 201.7 31.17 3.64 229.9 36.2 2.829
T140-1/BEE 35.15 27.59 3.236 403.3 53.32 3.387 309.7 44.24 2.968
T140-2/BEE 43.21 33.92 3.484 456.7 68.01 3.251 358.2 51.18 2.879
T140-3/BEE 57.52 45.15 4.418 947.5 114.4 4.059 466.7 66.67 2.848

Key parameter of guide rails
Designation Paramete /B
Tolerance/
4 m/s max.
Roughnes Ra Long.
Ra Tansv. 		1.6 um max
0.8um~3.2um
Straightness Straightness f/m max.
f/5m max. 		0.2mm
0.5mm
Twist Twist R max. 1mm/5m
Angle Angle S max.
sq1
Sq2 		±0.05mm
±0.05mm
±0.05mm
Parallelism Parallelism |h-h2| 0.05 mm
Centering Centering |a-b| 0.03mm
Maximum clearancefor connectio Maximum clearancefor connectio C max. 0.05mm
