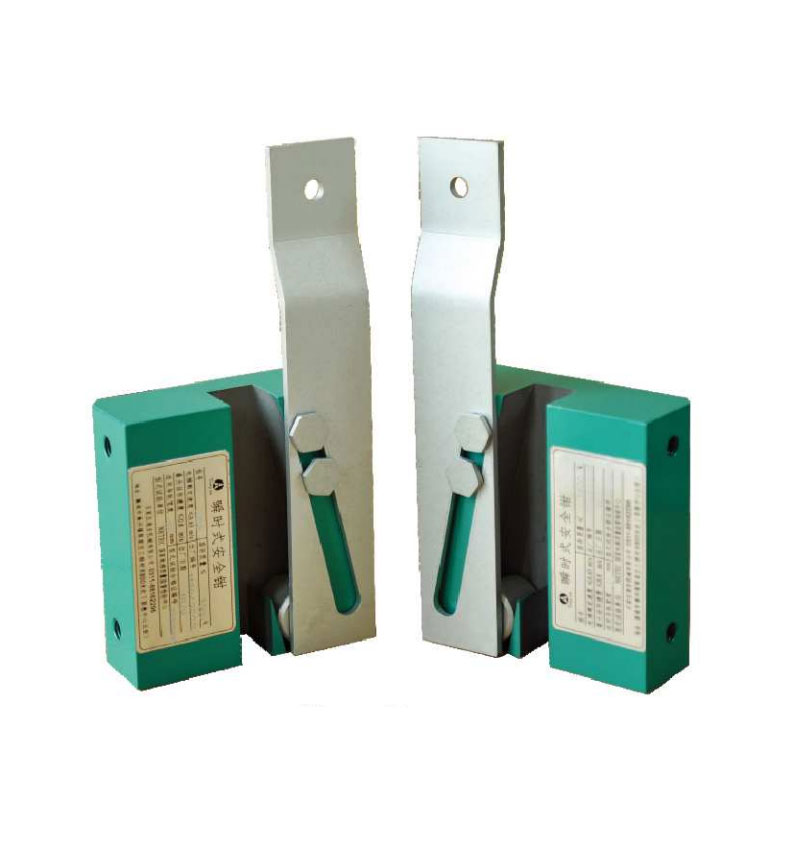

Instantaneous Safety Gear AQ6
AQ6 Instantaneous Safety Gear
|
NO. |
V(m/s) Rated speed |
(P+Q)(kg) Permissible mass |
K(mm) Rail width |
| 1 | ≤0.63 | ≤1500 | 9、10 |
Instantaneous Safety Gear AQS8B
AQS8B Instantaneous Safety Gear
| NO. |
V(m/s) Rated speed |
(P+Q)(kg) Permissible mass |
K(mm) Rail width |
Carframe arrangement | Roller guide arrangement | |||||||||||
| A | B | C | D | E | F | G | H | 1 | J | L | M | N | ||||
| 1 | ≤0.63 | ≤5800 | 16 | 30 | 70 | 70 | 210 | 260 | 165 | 5 | 15 | 30 | 65 | 70 | 110 | 4-M16 |
| 2 | 30 | 70 | 70 | 230 | 290 | 165 | 5 | 15 | 30 | 65 | 70 | 110 | 4-M16 | |||
| 3 | 32 | 70 | 70 | 225 | 265 | 165 | 3 | 17 | 32 | 63 | 70 | 110 | 4-M16 | |||
| 4 | 30 | 70 | 70 | 225 | 265 | 165 | 5 | 15 | 30 | 65 | 70 | 110 | 4-M16 | |||
Instantaneous Safety Gear AQS8
AQS8 Instantaneous Safety Gear
| NO. |
V(m/s) Rated speed |
(P+Q)(kg) Permissible mass |
K(mm) Rail width |
Carframe arrangement | Roller guide arrangement | |||||||||||
| A | B | C | D | E | F | G | H | I | J | L | M | N | ||||
| 1 | ≤0.63 | ≤12000 | 16 | 31.5 | 37 | 70 | 225 | 265 | 165 | 3.5 | 16.5 | 31.5 | 66 | 70 | 110 | 4-M16 |
| 2 | 30.5 | 38 | 70 | 225 | 265 | 165 | 4.5 | 15.5 | 30.5 | 63 | 70 | 110 | 4-M16 | |||
| 3 | 31.5 | 48.5 | 80 | 350 | 420 | 195 | 3.5 | 16.5 | 31.5 | 66 | 70 | 110 | 4-M16 | |||
Instantaneous Safety Gear AQ4Z
AQ4Z Instantaneous Safety Gear
| NO. |
V(m/s) Rated speed |
(P+Q)(kg) Permissible mass |
K(mm) Rail width |
| 1 | ≤0.63 | ≤600 | 5 |
Notes:Please mention the distance of the guide rail and left & right layout on your PO.
Instantaneous Safety Gear AQ4ZD
AQ4ZD Instantaneous Safety Gear
| NO. |
V(n/s) Rated speed |
(P+Q)(kg) Permissible mass |
K(mm) Rail width |
| 1 | ≤0.63 | ≤900 | 5 |
Notes:Please mention the distance of the guide rail and left & right layout on your PO.
