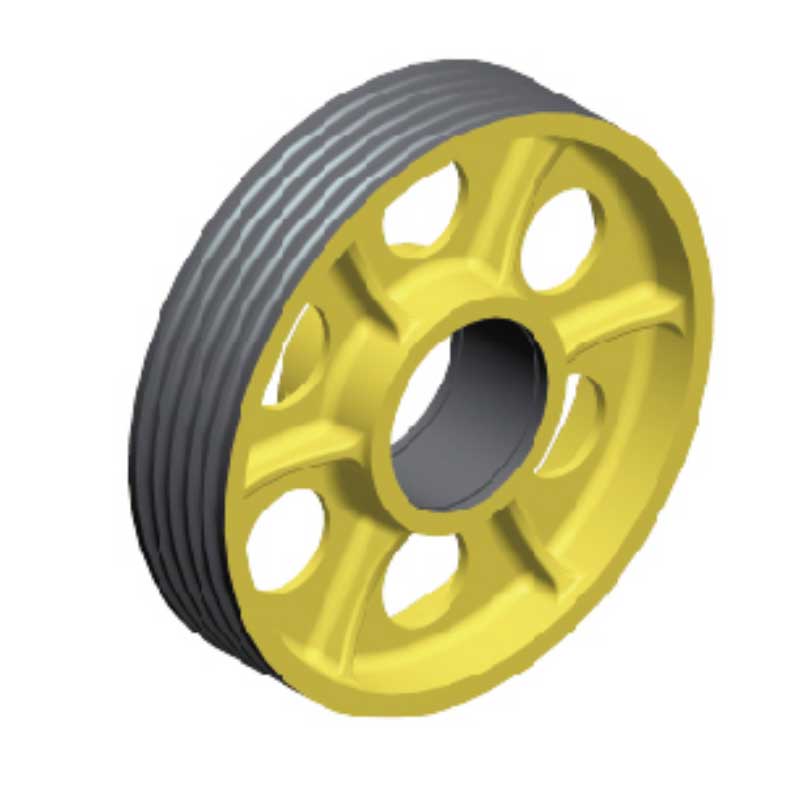

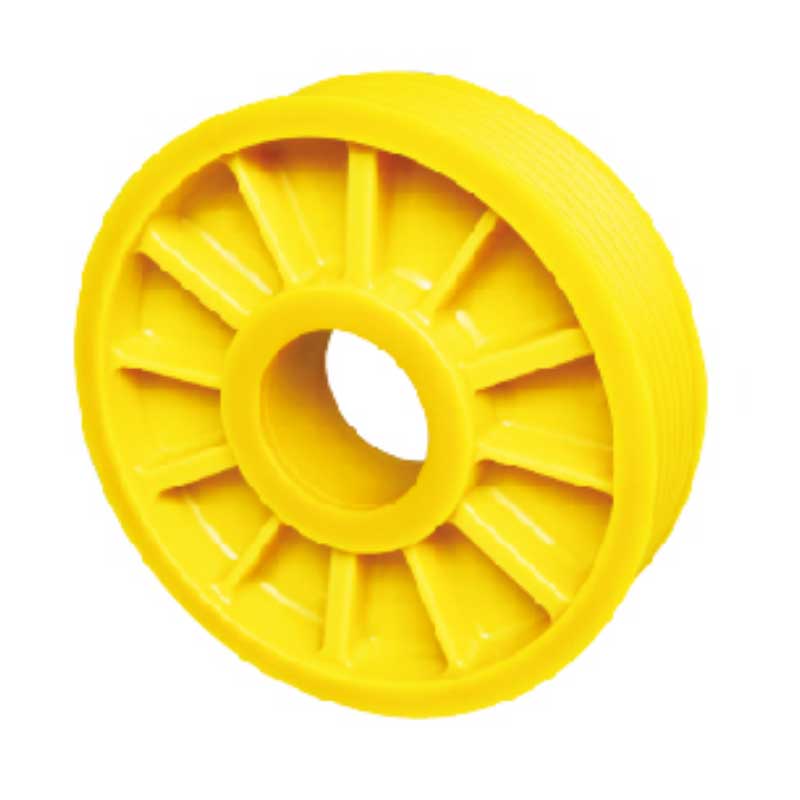

Elevator Guide Pulley

■ KDS specializes in developing various Elevator Guide Pulley products for the elevator industry, With our own R&D team, we constantly improve product design, and provide a variety of excellent solutions for the application of guide wheels in the elevator industry.
Send Inquiry
Product Description
Elevator Guide Pulley specification

Guide pulley

Diameter Diameter Number of slots Rope Diameter Slot Pitch Thickness Thickness Width Bearing Shaft Diameter Texture of material Q Try the ladder speed
D d N R S T1 T2 W B Z Nylon S45C+Nylon Iron KG Ve
320 90 3 8 12 60 60 44 6210 50 V V V ≤630 ≤1.0m/s
320 90 4 8 12 60 60 44 6210 50 V V V 630 ≤1.0m/s
320 90 5 8 12 70 70 54 6210 50 V V V ≤630 ≤1.0m/s
320 110 6 8 12 80 80 60 6310 50 V V V ≤800 ≤1.75m/s
320 110 7 8 12 90 90 70 6310 50 V V V ≤1000 ≤2.5m/s
320 110 8 8 12 100 100 80 6310 50 V
V ≤1000 ≤2.5m/s
400 110 3 8 12 70 80 60 6212 60 V V V ≤800 ≤1.5m/s
400 110 4 8 12 70 80 60 6212 60 V V V ≤800 ≤1.5m/s
400 110 5 8 12 70 80 60 6212 60 V V V 800 ≤1.5m/s
400 130 6 8 12 90 95 75 6312 60 V V V ≤2000 ≤2.5m/s
400 130 7 8 12 90 95 75 6312 60 V V V 2000 ≤2.5m/s
400 130 8 8 12 106 95 75 6312 60 V V V ≤2000 ≤2.5m/s
400 110 3 10 15 70 80 60 6212 60 V V V ≤800 ≤1.5m/s
400 110 4 10 15 70 80 60 6212 60 V V V ≤800 ≤1.5m/s
400 130 4 10 15 90 95 75 6312 60 V V V ≤2000 ≤2.5m/s
400 130 5 10 15 90 95 75 6312 60 V V V ≤2000 ≤2.5m/s
400 130 6 10 15 106 95 75 6312 60 V V V ≤2000 ≤2.5m/s
400 130 7 10 15 120 100 80 6312 60 V V V ≤2000 ≤2.5m/s
400 130 8 10 15 136 120 100 6312 60 V V V ≤2000 ≤2.5m/s
400 110 3 10 16 70 80 60 6212 60 V V V ≤800 ≤1.5m/s
400 110 4 10 16 70 80 60 6212 60 V V V ≤800 ≤1.5m/s
400 130 4 10 16 90 95 75 6312 60 V V V ≤2000 ≤2.5m/s
400 130 5 10 16 90 95 75 6312 60 V V V ≤2000 ≤2.5m/s
400 130 6 10 16 106 95 75 6312 60 V V V ≤2000 ≤2.5m/s
400 130 7 10 16 120 100 80 6312 60 V V V ≤2000 ≤2.5m/s
400 130 8 10 16 136 120 100 6312 60 V V V ≤2000 ≤2.5m/s
400 150 6 10 16 106 95 75 6314 70 V V V ≤3000 ≤2.5m/s
400 150 7 10 16 120 100 80 6314 70 V V V ≤3000 ≤2.5m/s
400 150 8 10 16 136 120 100 6314 70 V V V ≤3000 ≤.2.5m/s
440 110 3 10 16 70 80 60 6212 60 V
V ≤800 ≤1.5m/s
440 110 4 10 16 70 80 60 6212 60 V
V ≤800 ≤1.5m/s
440 130 5 10 16 90 95 75 6312 60 V
V ≤2000 ≤2.5m/s
440 130 6 10 16 106 95 75 6312 60 V
V ≤2000 ≤2.5m/s
440 130 7 10 16 120 100 80 6312 60 V
V ≤2000 ≤2.5m/s
440 130 8 10 16 136 120 100 6312 60 V
V ≤2000 ≤2.5m/s

Note: The above are our standard products, we also can supply products design by yourself.
xmdl480-640

Diameter Diameter Number of slots Rope Diameter Slot Pitch Thickness Thickness Width Bearing Shaft Diameter Texture of material Q Try the ladder speed
D d N R S T1 T2 W B Z Nylon S45C+Nylon Iron KG Ve
480 110 3 10 16 70 80 60 6212 60 V
V ≤800 ≤1.5m/s
480 110 4 10 16 70 80 60 6212 60 V
V ≤800 ≤1.5m/s
480 130 5 10 16 90 95 75 6312 60 V
V ≤2000 ≤2.5m/s
480 130 6 10 16 106 95 75 6312 60 V
V ≤2000 ≤2.5m/s
480 130 7 10 16 120 100 80 6312 60 V
V ≤2000 ≤2.5m/s
480 130 8 10 16 136 120 100 6312 60 V
V ≤2000 ≤2.5m/s
480 110 3 12 18 70 80 60 6212 60 V
V ≤800 ≤1.5m/s
480 130 4 12 18 90 95 75 6312 60 V
V ≤2000 ≤2.5m/s
480 130 5 12 18 100 95 75 6312 60 V
V ≤2000 ≤2.5m/s
480 130 6 12 18 120 100 80 6312 60 V
V ≤2000 ≤2.5m/s
480 130 7 12 18 136 120 100 6312 60 V
V ≤2000 ≤2.5m/s
480 130 8 12 18 156 120 100 6312 60 V
V ≤2000 ≤2.5m/s
520 110 3 10 16 76 90 70 6212 60 V V V ≤800 ≤1.5m/s
520 110 4 10 16 76 90 70 6212 60 V V V ≤800 ≤1.5m/s
520 130 5 10 16 90 95 75 6312 60 V V V ≤2000 ≤2.5m/s
520 130 6 10 16 106 95 75 6312 60 V V V ≤2000 ≤2.5m/s
520 130 7 10 16 120 100 80 6312 60 V V V ≤2000 ≤2.5m/s
520 130 8 10 16 136 120 98 6312 60 V V V ≤2000 ≤2.5m/s
520 150 8 10 16 136 120 98 6314 70 V V V ≤3000 ≤2.5m/s
520 130 3 13 20 76 90 70 6312 60 V V V ≤2000 ≤2.5m/s
520 130 4 13 20 90 95 75 6312 60 V V V ≤2000 ≤2.5m/s
520 130 5 13 20 120 100 80 6312 60 V V V ≤2000 ≤2.5m/s
520 150 6 13 20 136 120 98 6314 70
V V ≤3000 ≤2.5m/s
520 150 7 13 20 150 120 98 6314 70
V V ≤3000 ≤2.5m/s
520 150 8 13 20 170 120 98 6314 70
V V ≤3000 ≤2.5m/s
640 150 5 13 20 116 100 78 6314 70 V V V ≤3000 ≤2.5m/s
640 170 6 13 20 136 120 98 6316 80 V V V ≤5000 ≤2.5m/s
640 170 7 13 20 150 120 98 6316 80 V V V ≤5000 ≤2.5m/s
640 170 8 13 20 170 120 98 6316 80 V V V ≤5000 ≤2.5m/s
640 170 5 16 25 136 120 98 6316 80 V V V ≤5000 ≤2.5m/s
640 170 6 16 25 160 120 98 6316 80
V V ≤5000 ≤2.5m/s
640 170 7 16 25 190 120 98 6316 80
V V ≤5000 ≤2.5m/s
640 180 8 16 25 210 160 138 6317 85
V V ≤8000 ≤2.5m/s

Note:The above are our standard products, we also can supply products design by yourself.
